Payment form widget

You can use the payment form widget to perform payouts.

You add the widget to the page, show it to the user, and the user then interacts with the widget, going through all the payment steps from beginning to end. The user first securely enters their card details, and then sees a message telling them that the payment has been successful (or an error message if anything goes wrong).

You need to create a payment session, and the widget does the rest: it will send the payment request, redirect the user to the appropriate address, and show them the screen with the result of the operation.

How to perform a payment through the payment form >

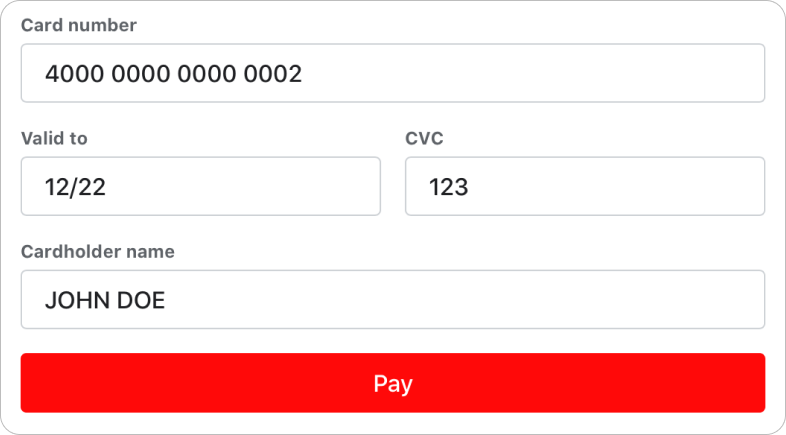

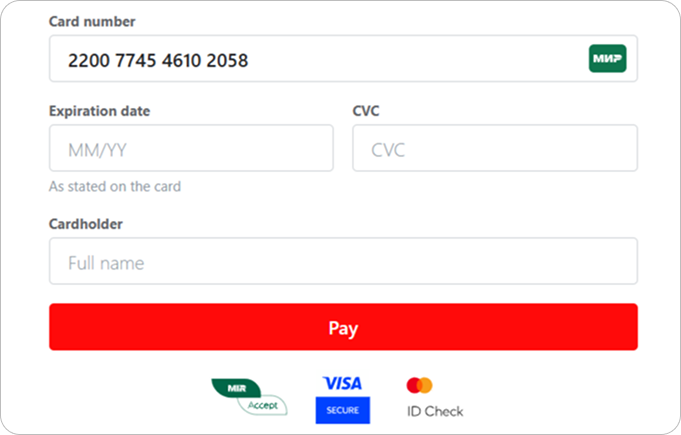

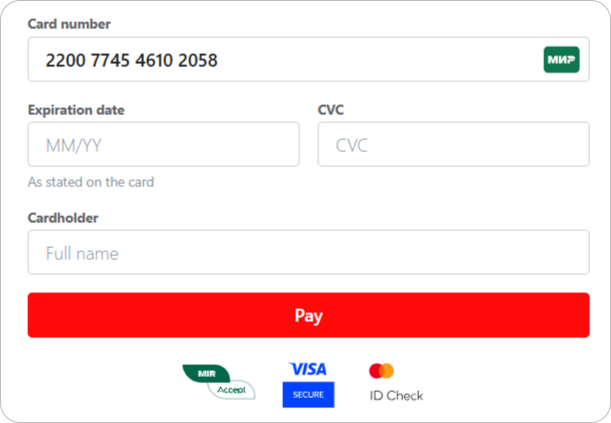

Regular widget

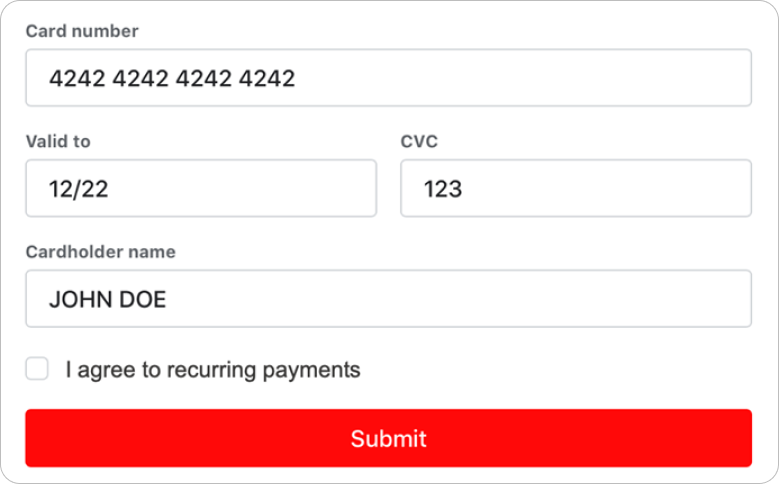

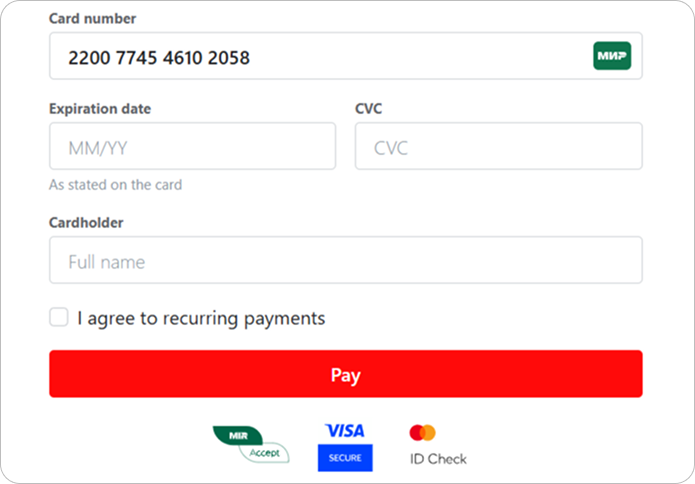

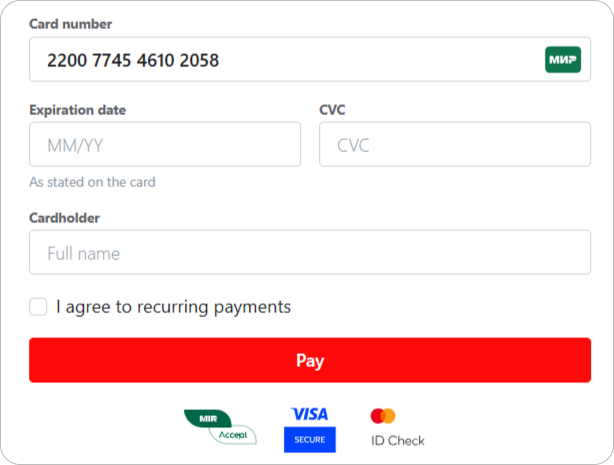

With a checkbox for enabling recurring payments

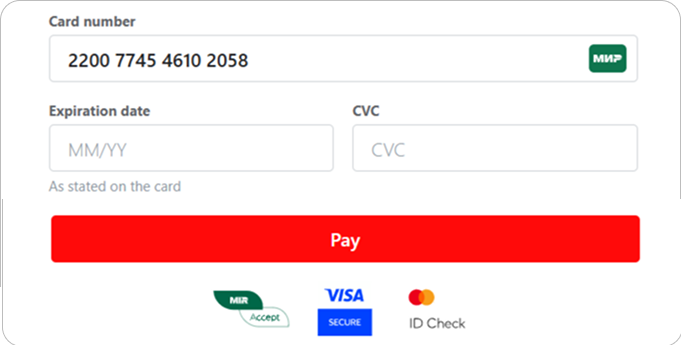

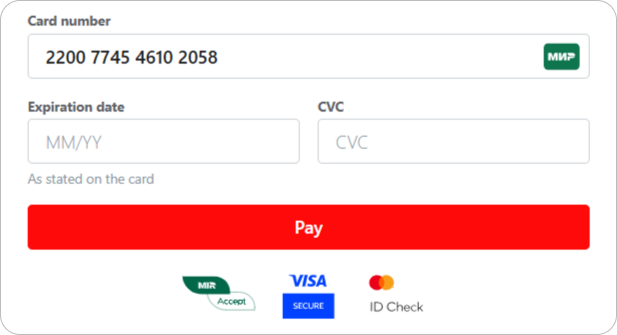

With no Cardholder field

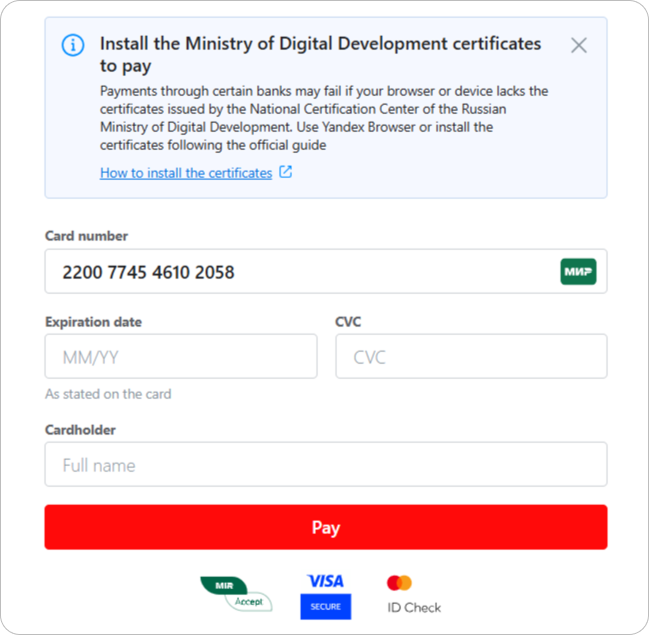

With the note

<!DOCTYPE html>

<html lang="ru">
  <head>
    <meta charset="utf-8" />
    <title>Payment form widget</title>

    <link href="https://widget.bank131.ru/payment-form.css" rel="stylesheet" />
    <script src="https://widget.bank131.ru/payment-form.js" defer></script>
  </head>

  <body>
    <div id="bank131-payment-form"></div>

    <script>
      document.addEventListener('DOMContentLoaded', function () {
        if (!window.Bank131PaymentForm) {
          return;
        }

        const paymentForm = new Bank131PaymentForm('publicToken', {
          isCvcMasked: true,
          hideCardHolderField: false,
          customerInteractionRedirect: {
               target: "_blank",
          }});

        paymentForm.render();
      });
    </script>
  </body>
</html>

1. Link the scripts and styles

<!-- In test environment -->
<link href="https://widget-demo.bank131.ru/payment-form.css" rel="stylesheet" />
<script src="https://widget-demo.bank131.ru/payment-form.js" defer></script>

<!-- For real payments -->
<link href="https://widget.bank131.ru/payment-form.css" rel="stylesheet" />
<script src="https://widget.bank131.ru/payment-form.js" defer></script>

<div id="bank131-payment-form"></div>

Once the script is linked to the page, the Bank131PaymentForm class will appear in the global scope. To create the payment form, pass the public token obtained to work with the widget to the constructor (the token method).

const paymentForm = new Bank131PaymentForm('public token');

To display the payment form, call the render() method:

paymentForm.render();

`Bank131PaymentForm`

Payment form class constructor.

const paymentForm = new Bank131PaymentForm(publicToken[, options])

Parameter	Type	Description
`publicToken`	string	Mandatory. Public token
`options`	object	Additional settings
`options.container`	HTMLElement	Container into which the form will be inserted. Default value: `<div id="bank131-payment-form"></div>`

Method: `paymentForm.render()`

The method displays the form on the page, in the container defined by the options.container parameter.

paymentForm.render([options])

Parameter	Type	Description
`options`	object	Additional settings
`options.container`	HTMLElement	Container into which the form will be inserted. Default value: `<div id="bank131-payment-form"></div>`

Event handler: `paymentForm.onReady`

Handles the event of the form becoming ready for work.

paymentForm.onReady = function () { /* handler */ }

Event handler: `paymentForm.onPaymentStart`

Handles the event occurring at the start of the payment process.

paymentForm.onPaymentStart = function () { /* handler */ }

Event handler: `paymentForm.onPaymentSuccess`

Handles the event occurring when the payment process finishes successfully.

paymentForm.onPaymentSuccess = function () {
  /* handler */
};

Event handler: `paymentForm.onPaymentFail`

Handles the event occurring when the payment process finishes unsuccessfully.

paymentForm.onPaymentFail = function (error) { /* handler */ }

Event handler: `paymentForm.onDestroy`

Handles the event of the widget getting closed.

paymentForm.onDestroy = () => {
/* handler */
    }

Hide CVV/CVC details

You can customize the CVV/CVC field of the widget to make it display only the latest digit entered by customers and mask the others entered before with *. To do this, add the isCvcMasked flag into the widget constructor, as follows:

const paymentForm = new Bank131PaymentForm('publicToken', {
         isCvcMasked: true,
         });

Open the 3D Secure window as required

You can choose how to open the 3D Secure window for the user. Use the target parameter of the customerInteractionRedirect object with the following options:

_blank — in a new tab
_self — in the same frame
_parent — in the next-level frame if the frames are nested in one another
_top — outside of all the frames as the top window
Default: _top.

Note that:

We do not recommend using the _self option for security reasons.

If you use the _blank option, the user will need to allow pop-ups in the browser or follow the redirection link from the payment widget.

Hide the cardholder name

To hide the Cardholder filed, pass hideCardHolderField: true. By default, the field is shown.

Display the note on certificates

To display the note on certificates issued by the National Certification Center of the Russian Ministry of Digital Development, pass isMDDCertificatesDisclaimerDisplayed: true. By default, the note is not shown.

Appearance

You can link your own styles after the library ones and override them, like this:

<link href="https://widget.bank131.ru/payment-form.css" rel="stylesheet" />
<link href="custom-styles.css" rel="stylesheet" />

Or this:

/* custom-styles.css */

.bank131-Field__label {
  color: green;
}

You cannot yet change the appearance of the values entered inside the iframe. This functionality will be added later.

Also, you can modify texts of the widget UI elements. Here are what you can change:

labels
placeholders
error messages
prompt texts
button names
footer texts

To do that, you should pass the Options object with UI elements parameters within the Bank131PaymentForm widget constructor.

Widget UI element	Parameter name	Type	Default value
Widget text settings	`texts`	object
Failed payment message	`failedPaymentScreen`	string	`Error`
Payment form	`paymentForm`	object
Payment button name	`buttonPayLabel`	string	`Pay`
Cardholder name text	`cardholderLabel`	string	`Cardholder`
Cardholder name prompt text	`cardholderNote`	string	None
Cardholder name placeholder	`cardholderPlaceholder`	string	`Full name`
Card number	`cardNumberLabel`	string	`Card number`
Card number prompt text	`cardNumberNote`	string	None
Card number placeholder	`cardNumberPlaceholder`	string	`0000 0000 0000 0000`
CVV/CVC number	`cvvLabel`	string	`CVC`
CVV/CVC number prompt text	`cvvNote`	string	None
CVV/CVC number placeholder	`cvvPlaceholder`	string	`CVC`
Card expiration date	`expireDateLabel`	string	`Expiration date`
Card expiration date prompt text	`expireDateNote`	string	`As stated on the card`
Card expiration date placeholder	`expireDatePlaceholder`	string	`MM/YY`
Recurring payment checkbox	`recurrentLabel`	string	`I agree to recurring payments`
Terms of agreement
Terms of agreement. The text within the mandatory `{{#link}}{{/link}}` tags is used as a link to the terms of agreement source.	`termsAgreement`	string	`By pressing Pay, you accept the terms of our {{#link}}user agreement{{/link}}`
Field validation error messages	`validationErrors`	object
Invalid card number	`INVALID_CARD_NUMBER`	string	`Invalid card number`
Invalid CVV/CVC	`INVALID_CVV`	string	`CVV/CVC has 3 digits`
Invalid card expiration date	`INVALID_EXPIRY_DATE`	string	`Invalid date`
Required field value is missing	`IS_REQUIRED`	string	`Required field`
Payment process page	`paymentProcessScreen`	object
Payment processing page text	`description`	string	`Just a moment`
Payment process screen heading	`title`	string	`Payment processing...`
Redirecting page (3D Secure)	`redirectionScreen`	object
Invitation message to proceed with redirection in case of automatic redirection failure. The text within the mandatory `{{#link}}{{/link}}` tags is used as a link.	`followTheLink`	string	If you haven`t been redirected automatically, use {{#link}}this link.{{/link}}
Payment processing page header	`title`	string	`Payment processing...`
Automatic redirection warning, includes 3 seconds countdown timer. The `{{countdown}}` value is mandatory and will be replaced with the timer. Use the `{{#strong}}{{/strong}}` tags to emphasize the timer in bold.	`waitForRedirectToBanksPage`	string	You will be redirected to the issuer bank`s page in {{#strong}}{{countdown}} seconds.{{/strong}}
Successful payment page	`successPaymentScreen`	object
Successful payment page header	`title`	string	`Payment success`
Transaction data	`transactionData`	object
Transaction amount label	`amountLabel`	string	`Amount`
Payment type data (card type and masked card number) label	`creditCardLabel`	string	`Card`
Transaction ID label	`transactionIdLabel`	string	`Transaction ID`
Unknown error message	`unknownError`	string	`Something went wrong...`

An example of code to modify texts:

const paymentForm = new Bank131PaymentForm('<public token>', {
  isCvcMasked: true,
  hideCardHolderField: false,
  texts: {
    failedPaymentScreen: {
      title: 'Error',
    },
    paymentForm: {
      buttonPayLabel: 'Pay',
      cardholderLabel: 'Cardholder',
      cardholderNote: '',
      cardholderPlaceholder: 'Full name',
      cardNumberLabel: 'Card number',
      cardNumberNote: '',
      cardNumberPlaceholder: '0000 0000 0000 0000',
      cvvLabel: 'CVC',
      cvvNote: '',
      cvvPlaceholder: 'CVC',
      expireDateLabel: 'Expiration date',
      expireDateNote: '',
      expireDatePlaceholder: 'As stated on the card',
      recurrentLabel: 'I agree to recurring payments',
      termsAgreement:
        'By pressing Pay, you accept the terms of our {{#link}}user agreement{{/link}}',
      validationErrors: {
        INVALID_CARD_NUMBER: 'Invalid card number',
        INVALID_CVV: 'CVV/CVC has 3 digits',
        INVALID_EXPIRY_DATE: 'Invalid date',
        IS_REQUIRED: 'Required field',
      },
    },
    paymentProcessScreen: {
      description: 'Just a moment',
      title: 'Payment processing...',
    },
    redirectionScreen: {
      followTheLink:
        'If you haven`t been redirected automatically, use {{#link}}this link{{/link}}.',
      title: 'Payment processing...',
      waitForRedirectToBanksPage:
        'You will be redirected to the issuer bank`s page in {{#strong}}{{count}} seconds.{{/strong}}',
    },
    successPaymentScreen: {
      title: 'Payment success',
    },
    transactionData: {
      amountLabel: 'Amount',
      creditCardLabel: 'Card',
      transactionIdLabel: 'Transaction ID',
    },
    unknownError: 'Something went wrong...',
  },
});

End user errors

While interacting with our widget, end users may receive the errors stated below.

If you choose to translate the widget texts into other languages, for example, Spanish, note that for now end users will receive error descriptions still in English.

Error code	Error description
`3DS_error`	To complete the transaction successfully, 3DS authentication is required
`activity_count_exceeded`	The activity/amount limit for the card is exceeded
`bank_card_expired`	The bank card is past its expiration date
`declined_by_issuer_bank`	The operation was declined by the emitting bank
`insufficient_funds`	The card does not have enough funds
